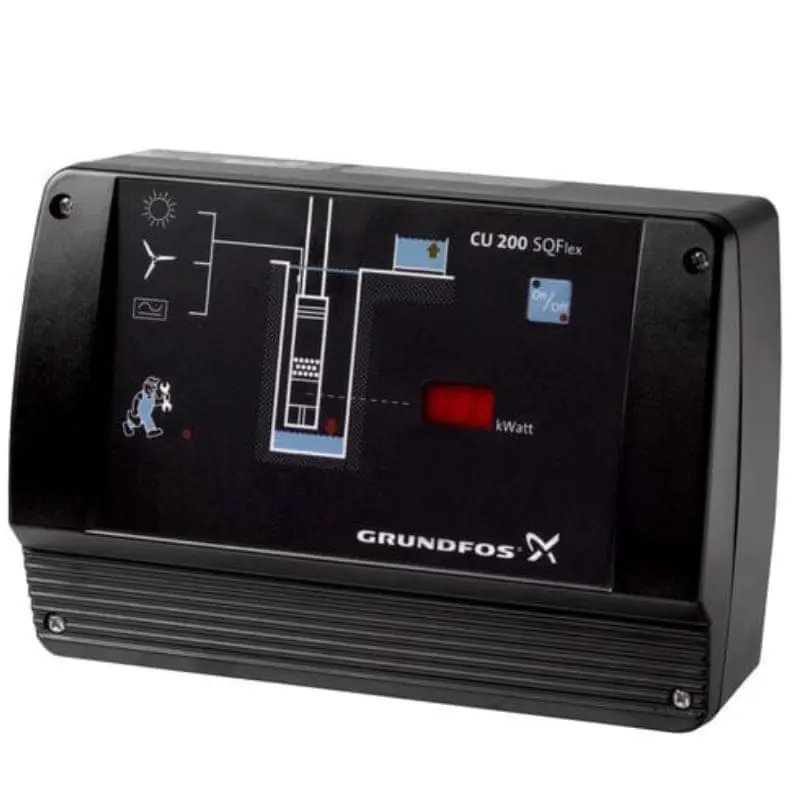

GRUNDFOS CU200 SQFLEX CONTROLLER

For use with utility power or sine wave inverters for AC, or series PV arrays for DC.
A user-friendly interface box that maintains two-way communication with the pump and monitors the operating conditions. Built-in diagnostics indicate faults and dry-running, operating status power consumption and level switch input. Built in system monitor display shows pump operation, full tank, input power (watts), Alarm indicator for dry run, overvoltage, overload, and overtemperature.
The CU 200 control unit is a combined status, control and communication unit especially developed for the SQFlex system. Furthermore, the CU 200 enables connection of a level switch.

Technical Data

  • Power consumption – 5 W
  • Rated voltage AC – 1 x 90-240 V
  • Rated voltage DC – 30-300 V
  • Back-up fuse – 10 A
  • Maximum load – 100 mA
