SUNTREE MC4 SOLAR CONNECTOR

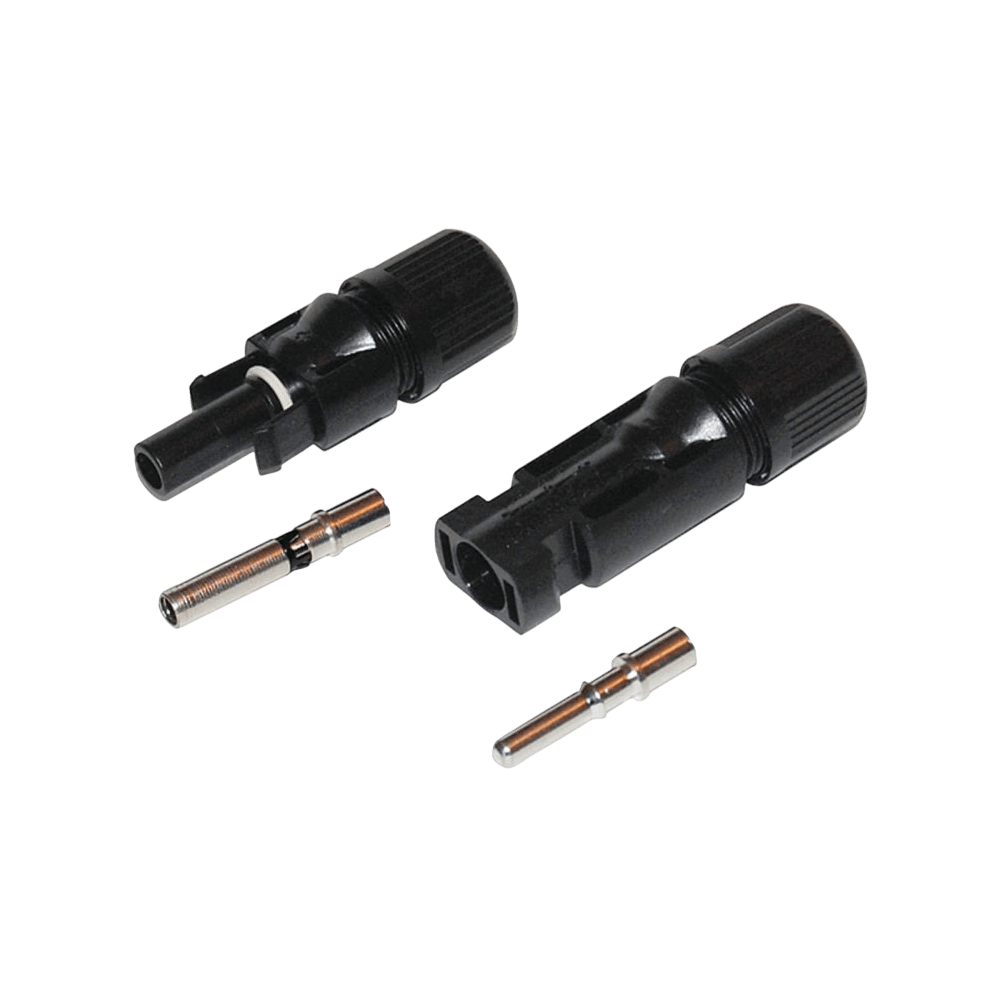

SUNTREE MC4 Solar connector

  • Simple on-site processing.
  • accommodates PV cable with different insulation diameters.
  • Mating safety is provided by keyed housings.
  • Multiple plugging and unplugging cycles.
  • High current carrying capacity.
  • TUV and UL approved.

Product Overview & Technical Data

  • IP67 cable solar connector Solar power system male and female cable connectors, solar cable connector ip67 solar
  • Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with
  • Outer insulation diameter of 3 – 6 mm
  • Contact diameter -4 mm
  • Maximum rated current – 30 A
  • Maximum system voltage – 1000 V
  • Degree of ingress protection when connected and properly locked – IP67
  • Temperature range 40°C to +90°C
